| Specification： | ISO | G42 4 M21 3Si1 |
| AWS | ER70S-6 | |
| GB | ER50-6 | |
| Shieding Gas： | CO2 or 80%Ar+20%CO2 | |
If you are interested in this welding wire, you can contact us via email(sinoweldingwire@gmail.com) or website interaction. (Due to the time difference we guarantee to reply to your message within 24 hours, thank you)

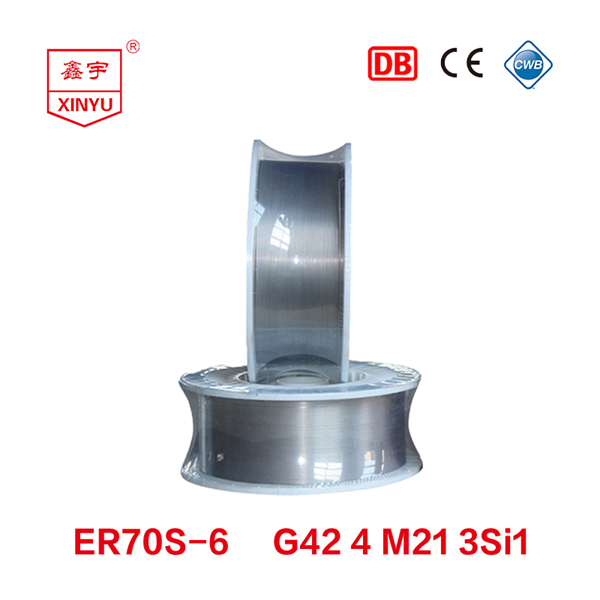

AWS ER70S-6 Welding Wire is a specification for a type of steel filler wire used in welding. The "ER" stands for "electrode or rod," the "70" indicates the minimum tensile strength of the weld metal in thousands of pounds per square inch (psi), and the "S" indicates that it is a solid wire. The "6" indicates that it has a higher level of deoxidizers (elements that help to remove oxygen from the weld pool) than other ER70S filler wires, which helps to improve the quality of the weld.
（Shielding Gas:CO2）
| C | Si | Mn | P | S |
| 0.08 | 0.68 | 1.32 | 0.011 | 0.008 |
（Shielding Gas:CO2）
| Tensild Strength MPa | Yield Strength MPa | Elongation % | Impact Energy Value | |
| ℃ | J | |||
| 560 | 440 | 31 | -30 | 89 |
| -40 | 78 | |||
| Dia (mm) | 0.8 | 0.9 | 1.0 | 1.2 | 1.4 | 1.6 | |
| Current Range (Amp) | Flat welding | 50 ~ 180 | 50 ~ 200 | 50 ~ 220 | 80 ~ 350 | 100 ~ 470 | 200 ~ 500 |
| Vertical up welding | 50 ~ 100 | 50 ~ 140 | 50 ~ 140 | 50 ~ 140 | 100 ~ 180 | — | |
| Overhead welding | 50 ~ 100 | 50 ~ 120 | 50 ~ 120 | 50 ~ 160 | — | — | |
| Vertical down welding | 50 ~ 100 | 50 ~ 200 | — | — | — | — | |
AWS ER70S-6 Welding Wire is a wire with a high deoxidizer content, made of low carbon steel, for welding steels with moderate amounts of scale or rust. (Compared to other carbon steel welding wires, Type ER70S-6 wire has a higher deoxidizer content. This wire is suitable for welding steel with a moderate amount of scale or rust.
When using ER70S-6 (ER49S-6) in combination with gas shielded metal arc welding (MAG), use pure CO2 (classified as C1 according to AWS A5.32) or a mixture of argon + CO2.
AWS ER70S-6 Welding Wire is a good choice for weldments that require a better connection and wetting than 70S-3 electrodes. It is a good choice for welding pressure vessels. It is an excellent choice for pressure vessels, structural steel, piping, steel buildings, and automotive repair.
AWS ER70S-6 MIG wire with higher manganese and silicon content than other standard grades is used to produce high-quality welds on dirty, oily, or rusty steel. The high silicon content increases the fluidity of the molten pool, which produces a smoother weld channel appearance and minimizes post-weld grinding. The wire has been carefully designed to provide a porosity-free, X-ray quality weld at the highest tensile strength (when welded) of any plain carbon steel wire.
This product requires a shielding gas: CO2 and/or CO2 mixture.
ER70S-6 MIG wire provides excellent spatter control and enhanced weld channel profile.
Excellent rust and oxide skin resistance, excellent wetting quality and high fluidity of the weld pool.
The wire consisting of manganese and silicon has the highest deposition strength compared to all other carbon steel MIG wires.
The wire includes good washout resistance at the weld toe and flat welding beads reducing defects, scrap and rework.
This product is the general MAG / CO2 welding wire and suitable for all-position welding. welding wire is ideal for welding on metals with moderate to high presence of dirt, rust or oxide and can be used as industrial, agricultural, construction and mining equipment.
Wire is well suited for single-pass welding in sheet metal applications, multi-pass welding of thick sections, all-position welding, butt and fillet welding of thin plates and sheets of various thicknesses, and general carbon steel construction.
The wire has stable arc at low currents , less sparks and splashing, and adapt to larger current range.
The wire complies with AWS 5.18 and is also well suited for automotive repair and HVAC ductwork.
Industrial, agricultural, construction and mining equipment
Automotive repair
For welding on metals where moderate to high levels of dirt, rust or oxide are present
Single-pass welds on sheet metal applications
Multi-pass welds on thick sections
All-position welding
Butt and fillet welding on thin sheets and plates of various thicknesses
HVAC duct work
General carbon steel structural welding
Heavy equipment
1. Pay attention to the gas purity and mixture ratio.
2. Keep the gas flow rate between 15 ~ 25 L / Min.
3. The extension length keep between 15 to 20mm.
4. Clear the oil, rust, moisture, dust and other debris of the welded parts.
5. Keep the welding hood clean and unobstructed.
